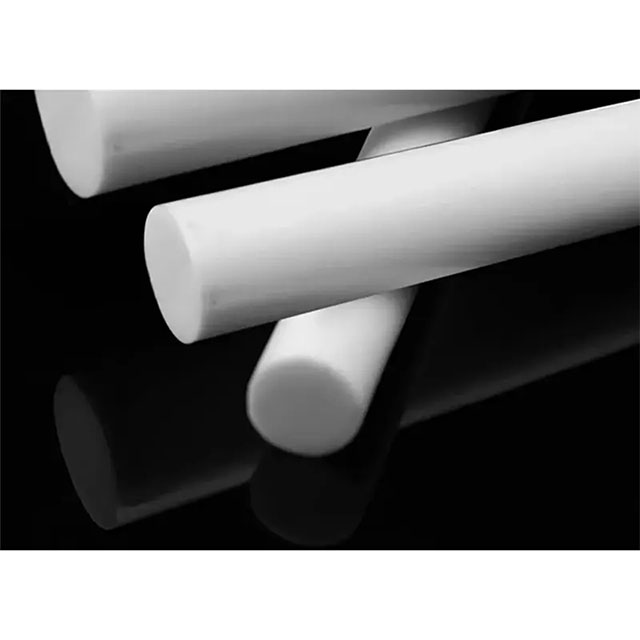

PTFE Rod/ Teflon Rod

PTFE Rod, also known as Polytetrafluoroethylene rod, is a premium plastic rod materialrecognized for its strength, dimensional stability, and outstanding insulation properties. It is manufactured through compression molding or extrusion processes, making it suitable for both small and large-diameter requirements.

As an engineering plastic, PTFE rods are widely applied in electrical, chemical, mechanical, food, and medical industries, thanks to their thermal stability, low friction surface, and chemical inertness. These properties ensure long service life, reduced equipment downtime, and reliable performance under extreme environments.

PTFE rods are available in a broad range of sizes:

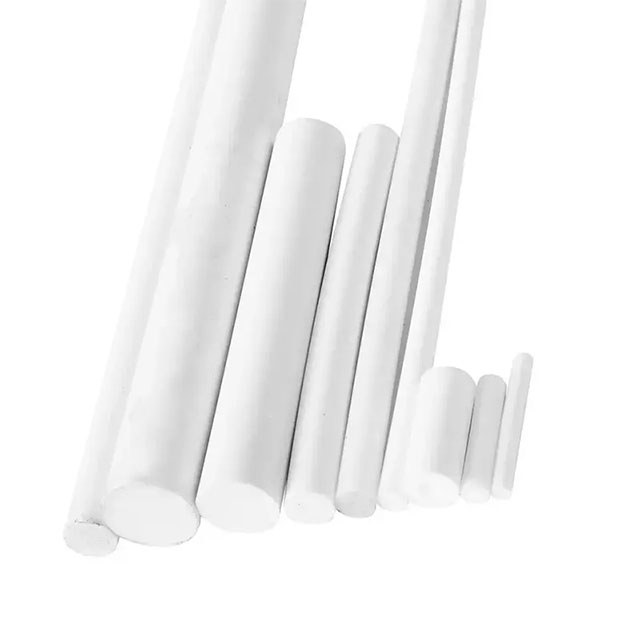

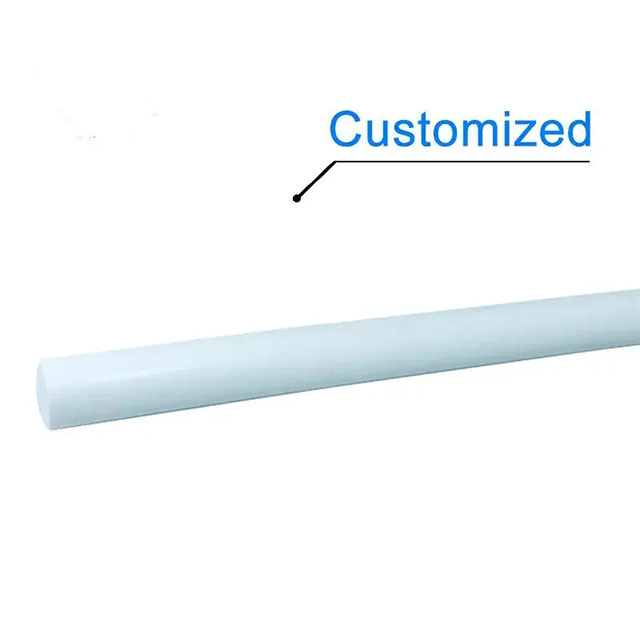

• Diameter Range: 4 mm to 300 mm (custom diameters available)

• Length Range: 1000 mm, 2000 mm, and 3000 mm standard; cut-to-size options available

• Processing Types: Compression molded rods for large diameters, extruded rods for smaller diameters, and ram-extruded rods for continuous lengths

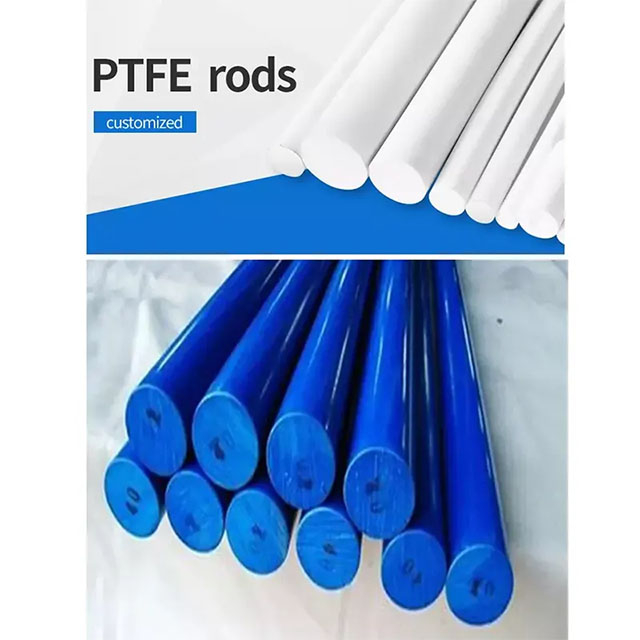

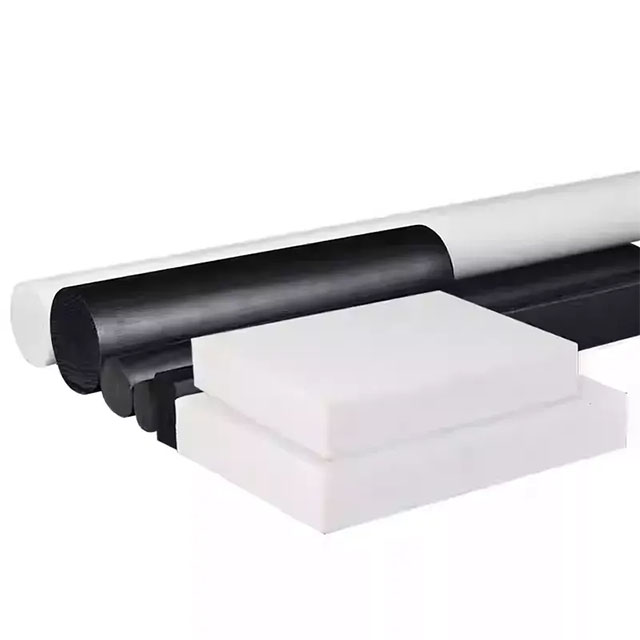

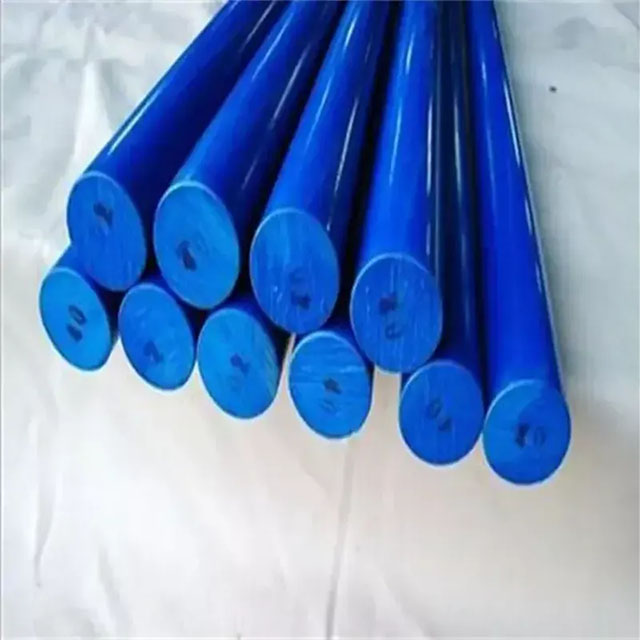

• Colors: Standard White; Black, Blue, or customized colors offered

• Tolerance: Precision machining for strict dimensional accuracy

These flexible production options make PTFE rods suitable for general industrial use as well as specialized high-performance applications, reinforcing their role as a reliable insulation material.

1.Exceptional Chemical Resistance – Resistant to nearly all chemicals, ensuring safety and reliability in aggressive environments.

2. Wide Operating Temperature – Maintains performance between -180°C and +260°C, suitable for cryogenic and high-heat uses.

3. Electrical Insulation – High dielectric strength makes PTFE rods one of the most effective electrical insulation materials for demanding environments.

4. Low Coefficient of Friction – Self-lubricating properties reduce wear and extend equipment lifespan.

5. Non-stick Surface – Hydrophobic and easy to clean, preventing contamination in food and medical uses.

6. High Mechanical Performance – Combines toughness with flexibility, supporting heavy loads and high-stress applications.

7. Weather and Flame Resistance – Non-flammable, UV-stable, and unaffected by harsh outdoor conditions.

These combined features make PTFE rods not only durable but also indispensable in industries seeking long-term reliability and high safety standards.

1.Electrical and Electronics – Applied as insulation material in connectors, insulators, and high-voltage components.

2. Chemical Processing – Used in gaskets, seals, and linings of pipes, tanks, and pumps exposed to aggressive chemicals.

3. Mechanical and Industrial Engineering – Machined into bushings, bearings, gears, and piston rings requiring self-lubrication.

4. Food and Medical Industry – FDA-approved PTFE rods are applied in sealing parts, conveyor systems, and biocompatible medical devices.

5. Automotive and Aerospace – Utilized in engine components, vibration control systems, and lightweight aerospace structures.

6. Construction and Renewable Energy – Applied in sealing parts, solar panel supports, and wind turbine components exposed to weather extremes.

Across these applications, PTFE rods prove themselves to be one of the most versatile plastic rod materials, offering insulation, chemical resistance, and durability that outperforms conventional plastics.
